○ 被測燈具尺寸為Φ22~Φ180mm
○ 被測燈具與探頭的測試距離為316mm/1000mm

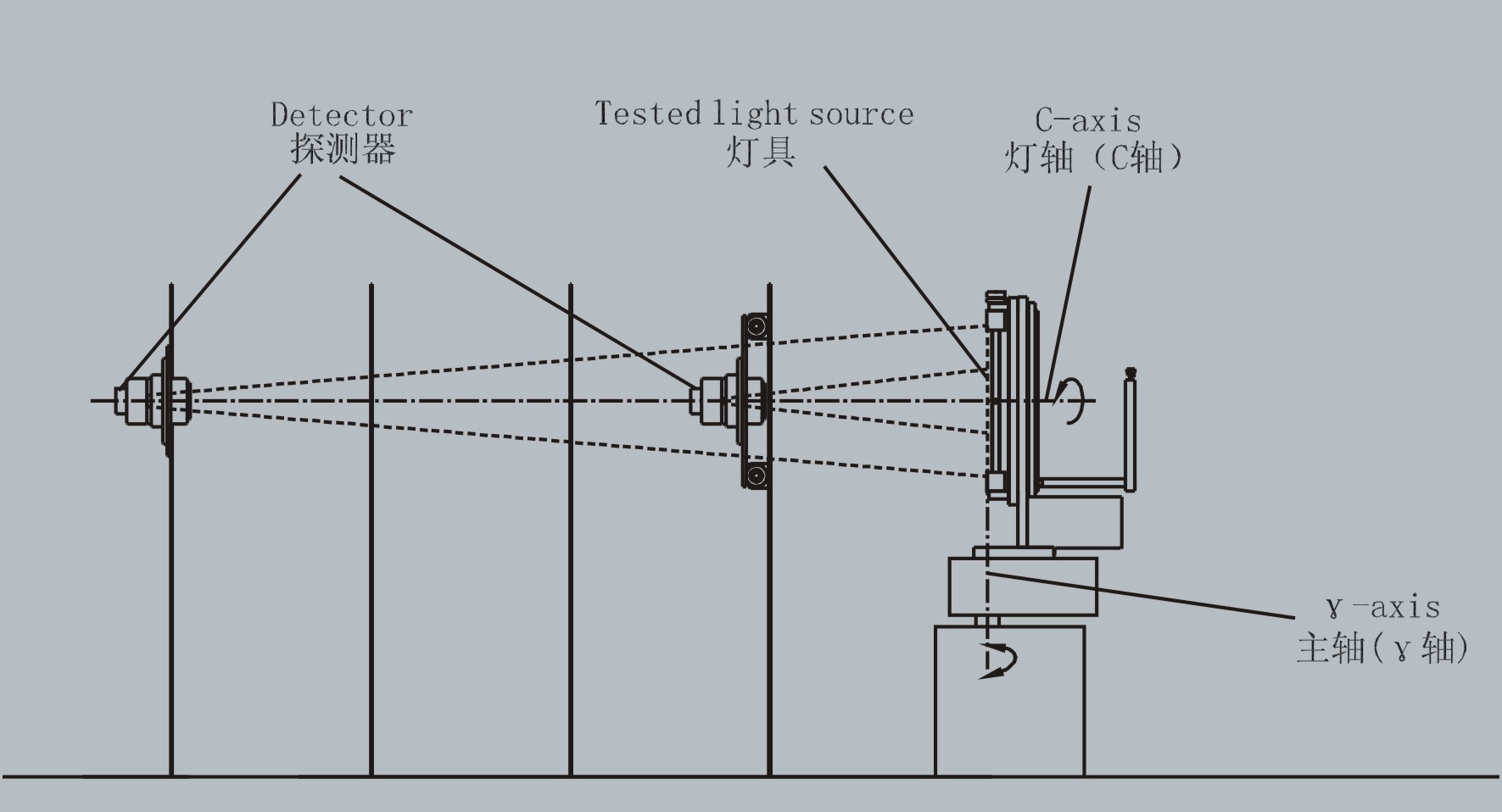

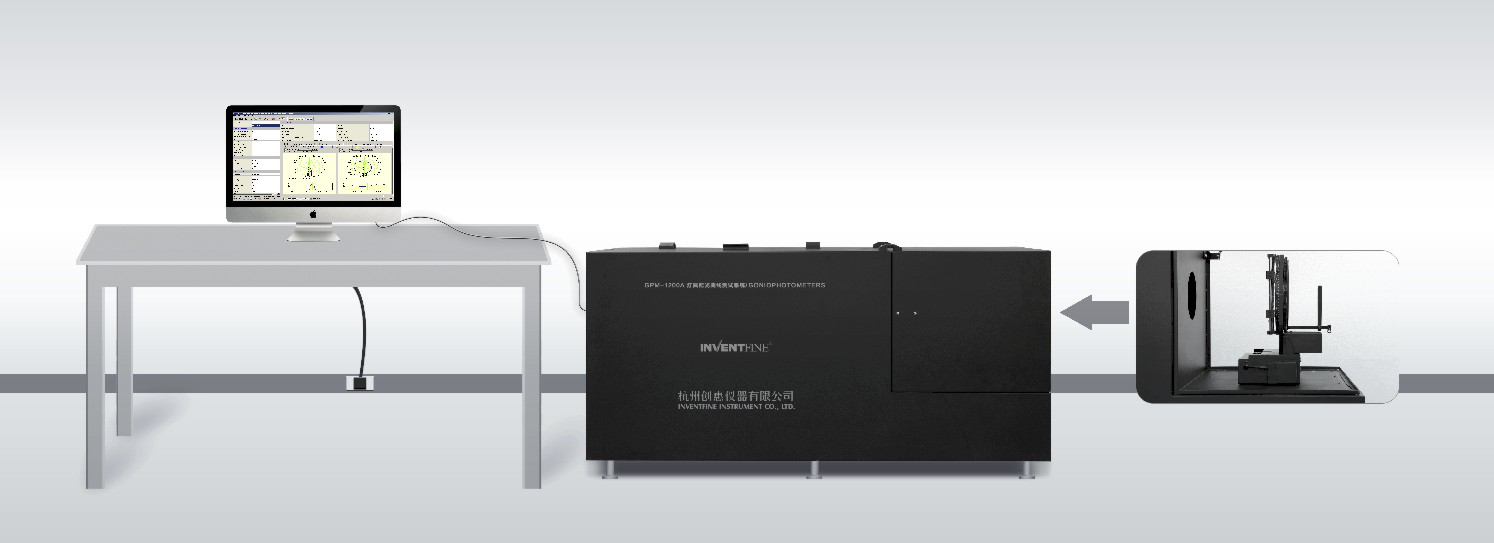

根據CIE和IEC標準對LED測試方法,專用于單體LED和組合型照明LED的電性能、光度性能、光束分布等特性參數的測量。儀器自帶測試光柵和測試暗箱,滿足任何環境下的測試要求。主要應用于單顆LED,LED反射燈、par燈等各種LED光源燈具的光電參數測量。可繞c軸、γ軸自動旋轉。獲得三維光強分布圖。

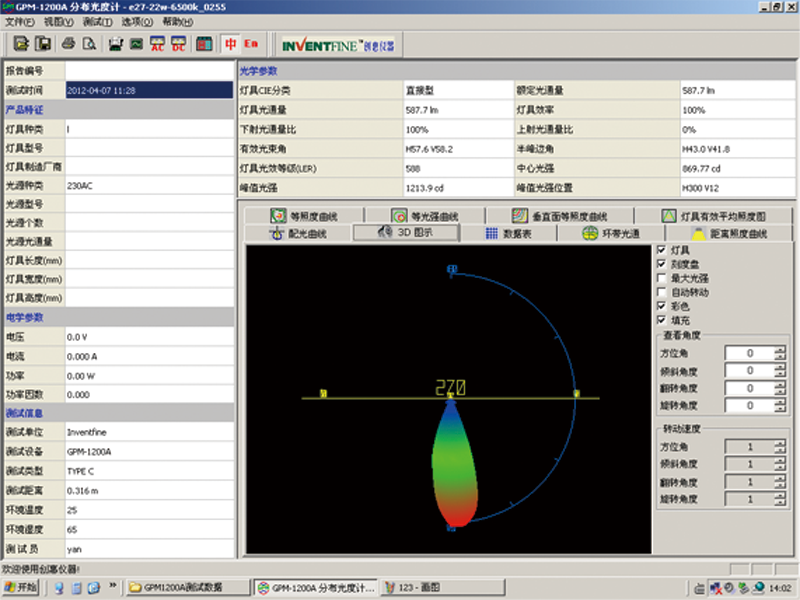

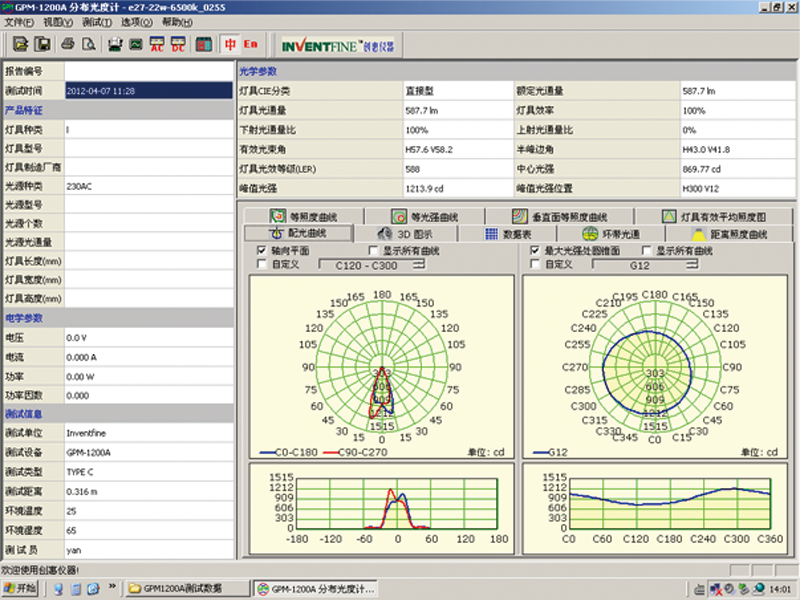

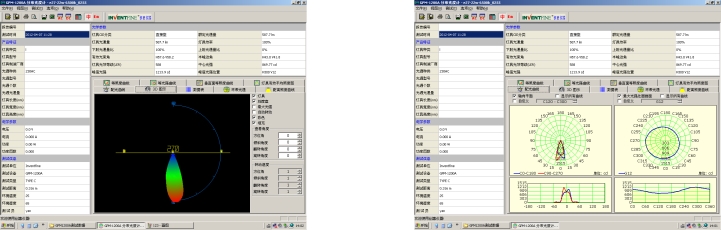

測試界面

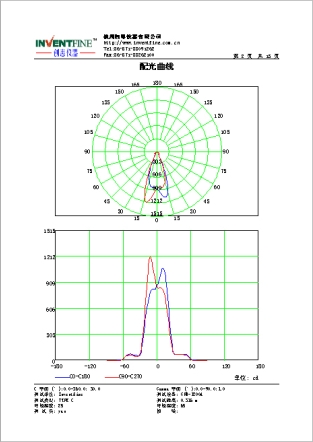

測試報告
>光度測量范圍:0.1~30,000cd
>光度測量精度:一級
>角度測量范圍:垂直軸-90°~+90° 水平軸0°~360°
>角度測量精度:±0.2°
>測量角度間隔選擇: 0.5°/1°/1.5°
>自動繪制光強空間分布曲線(極坐標和直角坐標)
>自動測定光束角:常用的半強度角以及可以滿足特殊要求的1/4光強度角和3/4光強度角和1/10光強度角
>被測燈具尺寸為Φ22~Φ180mm
>被測燈具與探頭的測試距離為316mm/1000mm
>工作電源:
① 供電電壓:AC 220V±10%
② 電源頻率:50Hz/60Hz
③ 功耗:35VA
>工作環境要求:
① 允許工作環境溫度:0℃~40℃
② 正常測量最佳溫度:25℃±5℃
③ 相對濕度:≤65%R.H
被測燈具尺寸為Φ22~Φ180mm
被測燈具與探頭的測試距離為316mm/1000mm
GB/T 9467-2008, “室內燈具光度測試”
GB/T 9468-1988, “道路照明燈具光度測試”
GB/T 7002-2008,“投光照明燈具光度測試”
LB/T 001-2008 “整體式LED路燈的測量方法”
GB/T 24824-2009 “普通照明用LED模塊測量方法”
CIE Pub. NO.70, “The Measurment of Absolute Luminous Intensity Distributions”
CIE DIV.Ⅱ-TC10, “Photometry of Luminaires”
CIE Pub.NO.76, “Photometry-the CIE Sytstem of Physical Photometry”
CIE 121-1996 “The Photometry of Goniophotometer of Luminaries”
IESNA LM-75 “Goniophotometer Types and Photometric Coordinates”
IESNA LM-79 “Electrical and Photometric Measurements of Solid-state Lighting Products”
IESNA-1971(73-96),“IES Practical Guide to Photometry”
IESNA 61341 “Method of Measurement of Center Beam Intensity and Beam Angle(s) of Reflector Lamp”
...

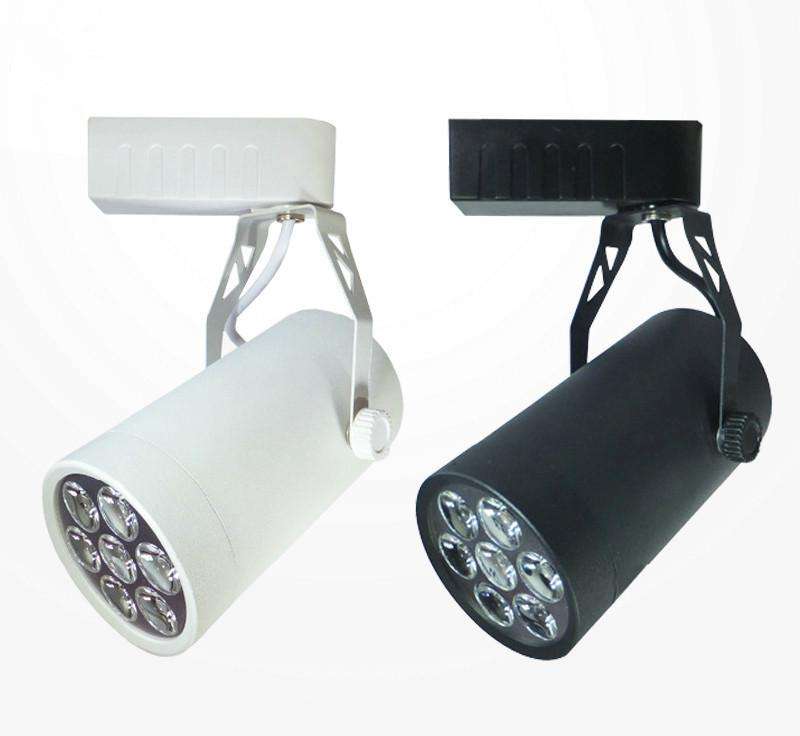

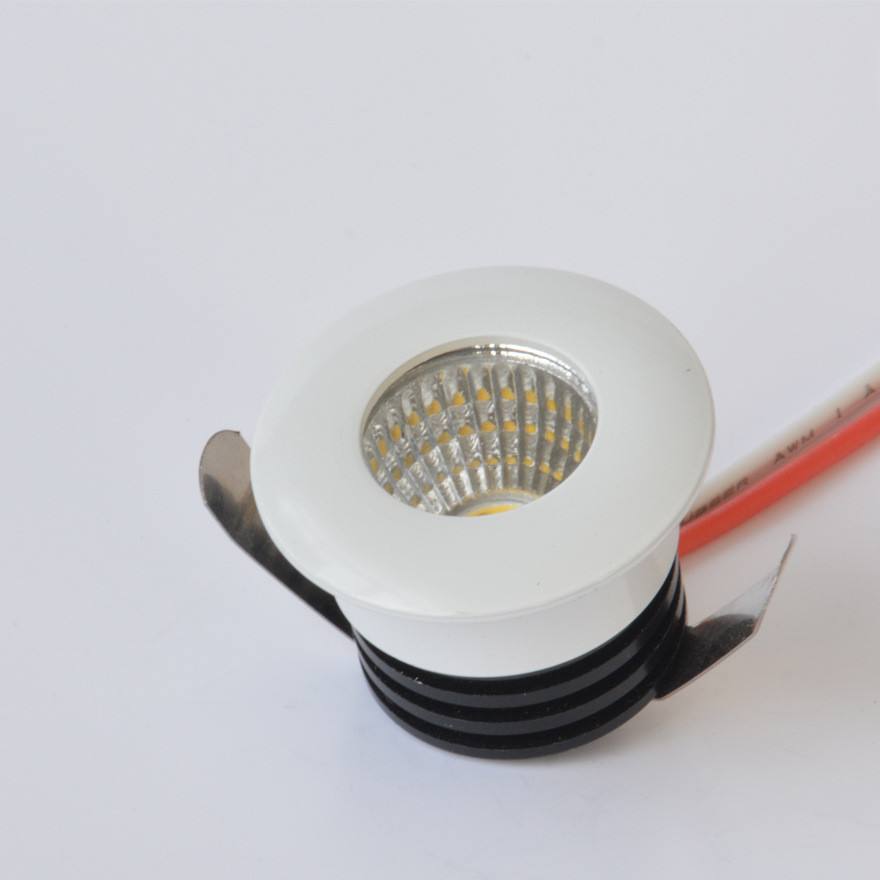

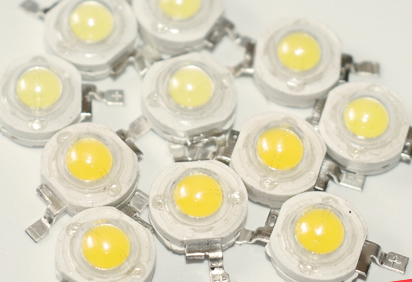

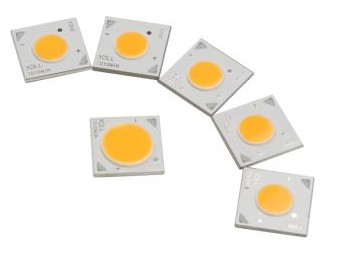

適用于單顆LED、COB、小型筒燈、射燈、Par燈
